Inhouse product
Fan diameter: 200 mm (8 inch); Fan speed (max): 2800 rpm; Max air delivery: 1500 m3/h
Flexible PVC Ducting Diameter: 200 mm (8 inch); Expands length: 5 m (16.41 ft)

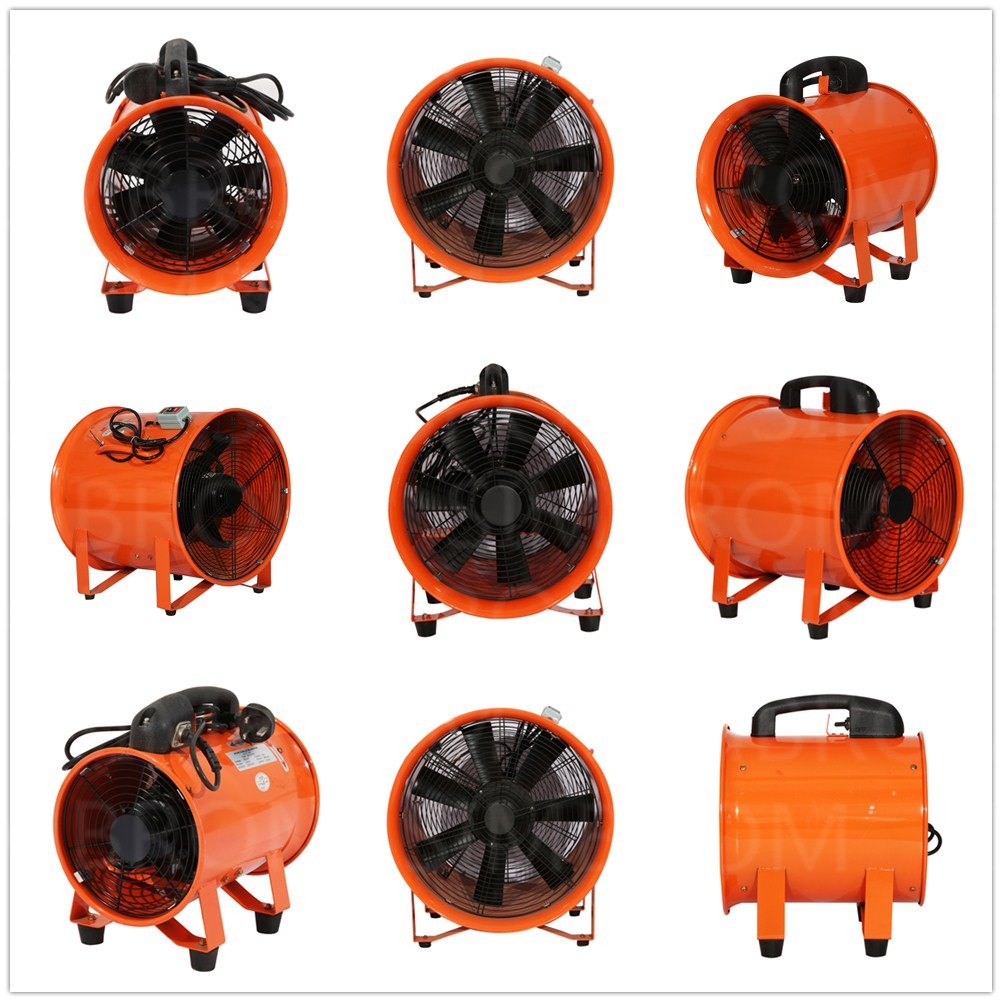

Ventilation Axial fan industrial blower features robust welded steel construction and one flared end for attaching ducting
5m quick connect duct hoses are made of hard-wearing, flexible vinyl woven polyester, with toughened ring
This 8" 200mm Portable Ventilation Axial Fan with 5m Flexible Duct SHT-20 blower is ideal for: Workshops, Welding Booths, Factories, Laboratories, Roof Spaces
Dust Fume Extractor 8inch 200mm Ventilation Fan Industrial Blower with 5m PVC Ducting
Introduction

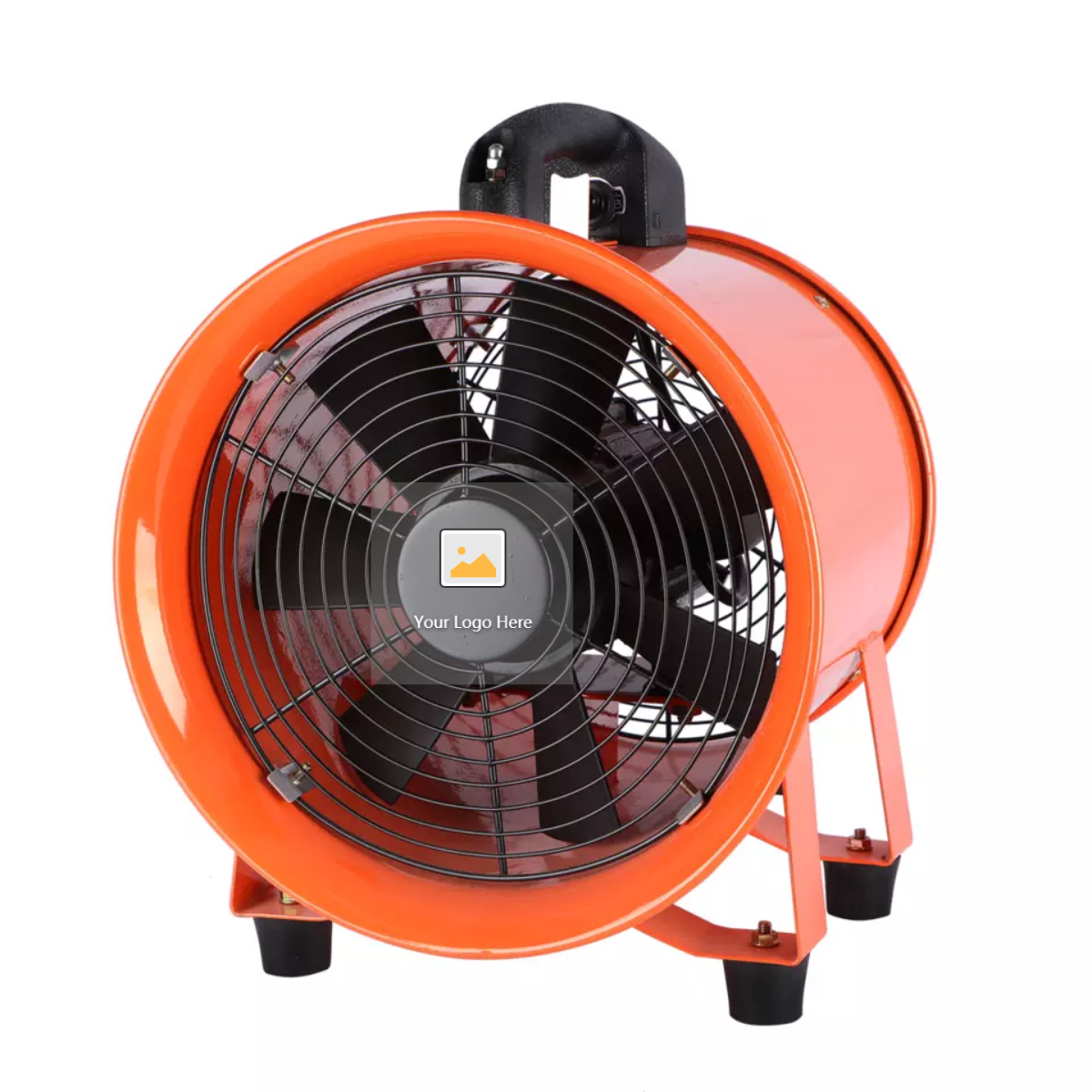

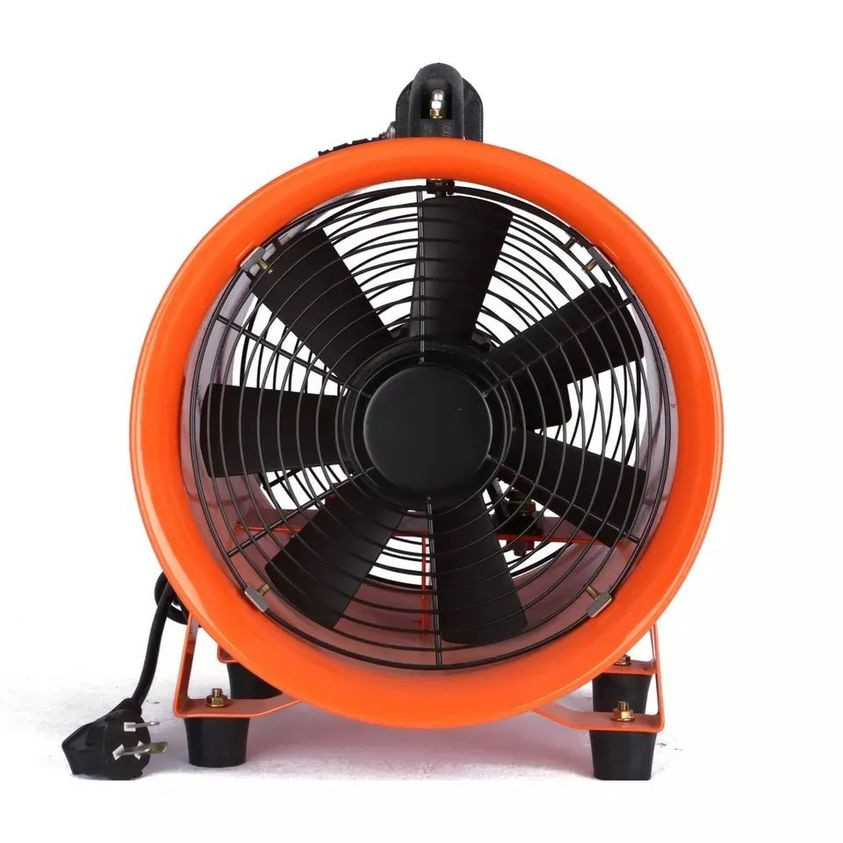

The 200 mm (8 inch) dust fume extractor ventilation fan industrial blower, come with 5 m flexible PVC ducting. Ventilation fan industrial blower features robust welded steel construction and one flared end for attaching ducting. The ducts are flame-retardant and easily connect to the extraction side fan lip. Ducts are easily retractable and designed to handle large volumes of air at relatively low pressure.
Feature:
200 mm (8 inch) Dust fume extractor
Ventilation fan industrial blower
Robust welded steel construction
One Flared end for attaching ducting
Balanced carrying handle for transportation
Guarded on/off switch
Anti-vibration rubber feet
Includes 5m flexible PVC ducting
Can be used on either side of the fan
Strong vinyl material with toughened ring
Easy to store when not in use
8" 200mm Portable Ventilation Axial Fan with 5m Flexible Duct SHT-20 Can be linked to multiple hoses of the same specification to extend length
Specification:
Product: Blower fan + duct
Package size: 34 x 25 x 33 cm
Gross weight: 11.58 kg
Dust Fume Extractor
Voltage: 220 V
Power: 230 W
Fan diameter: 200 mm (8 inch)
Fan speed (max): 2800 rpm
Max air delivery: 1500 m3/h
Static pressure: 245 Pa
Noise: 65 dBA
Flexible PVC Ducting
Diameter: 200 mm (8 inch)
Expands length: 5 m (16.41 ft)
Package Content:
1 x Industrial Blower Fan
1 x 5M PVC Ducting
Part Number | SHT-20 |
---|---|
Item Weight | 14.1 pounds |
Product Dimensions | 34x 25 x 33 CM |
Item model number | SHT-20 |
Is Discontinued By Manufacturer | No |
Size | 8 Inch |
Color | Orange |
Style | Utility Blower |
Material | Metal |
Pattern | Solid |
Power Source | Ac |
Voltage | 220 Volts |
Wattage | 230 watts |
Item Package Quantity | 1 |
Air Flow Capacity | 3900 CMPH |
Special Features | 220V |
Included Components | 1 x 2 m Electric Wire Cable |
Batteries Included? | No |
Batteries Required? | No |
8" 200mm Portable Ventilation Axial Fan with 5m Flexible Duct SHT-20 ducted fan flexible exhaust air duct for farm Small volume Ventilation exhaust fan

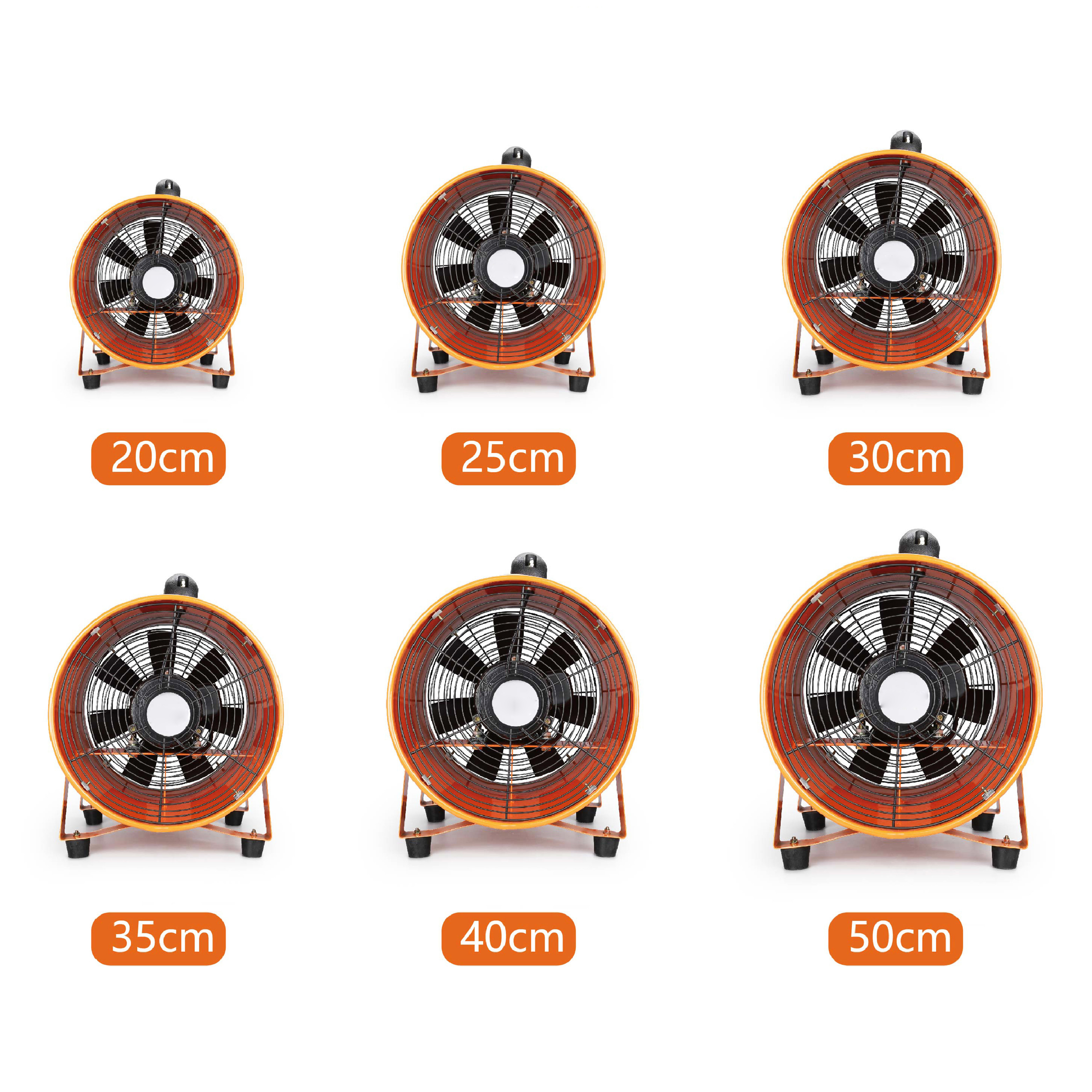

Size (mm) | Voltage (V) | Hz | Power | Rotating speed (r/min) | Air Flow (m³/min) | Pa | dB(A) | Carton size (cm) | Weight (kg) |
200/8'' | 220 | 50 | 230 | 2800 | 25 | 245 | 63 | 34*25*33 | 8 |
250/10'' | 220 | 50 | 320 | 2800 | 43 | 294 | 68 | 38*29*33 | 9 |
300/12'' | 220 | 50 | 520 | 2800 | 65 | 373 | 71 | 42*34*42 | 13 |
350/14'' | 220 | 50 | 750 | 2800 | 82 | 598 | 76 | 48*42*40 | 20 |
400/16'' | 220 | 50 | 1100 | 2800 | 96 | 700 | 80 | 50*45*49 | 22 |

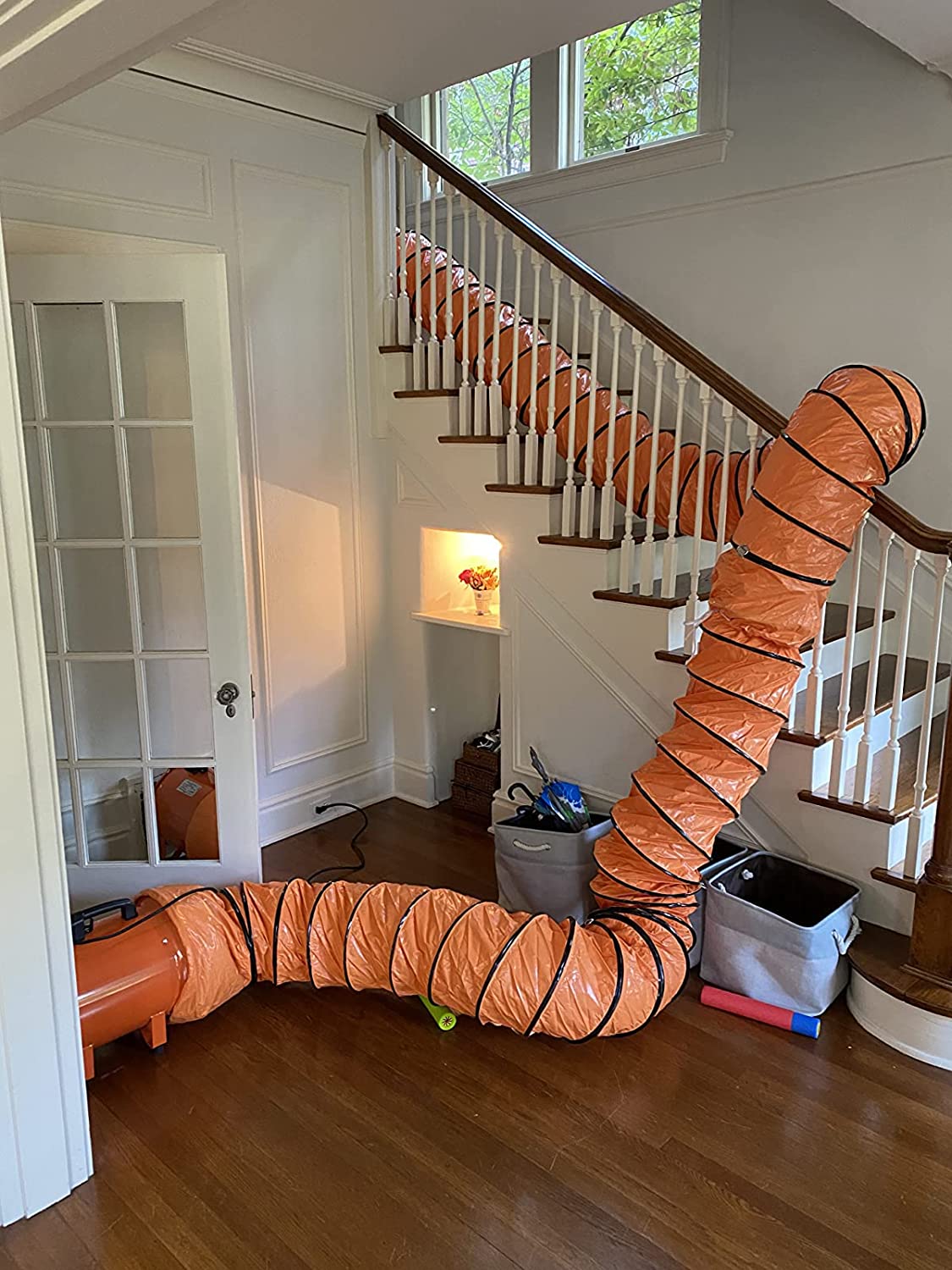

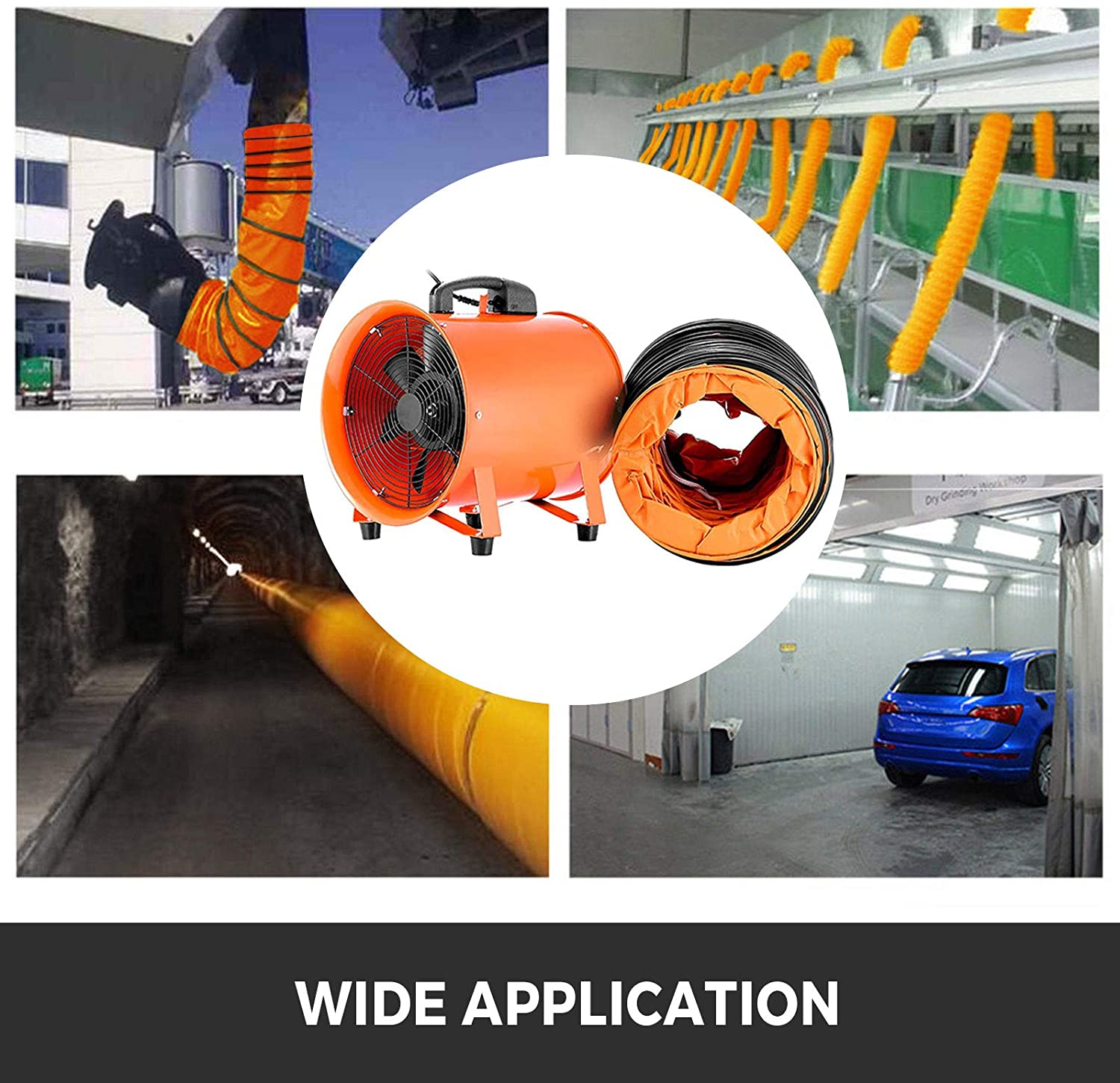

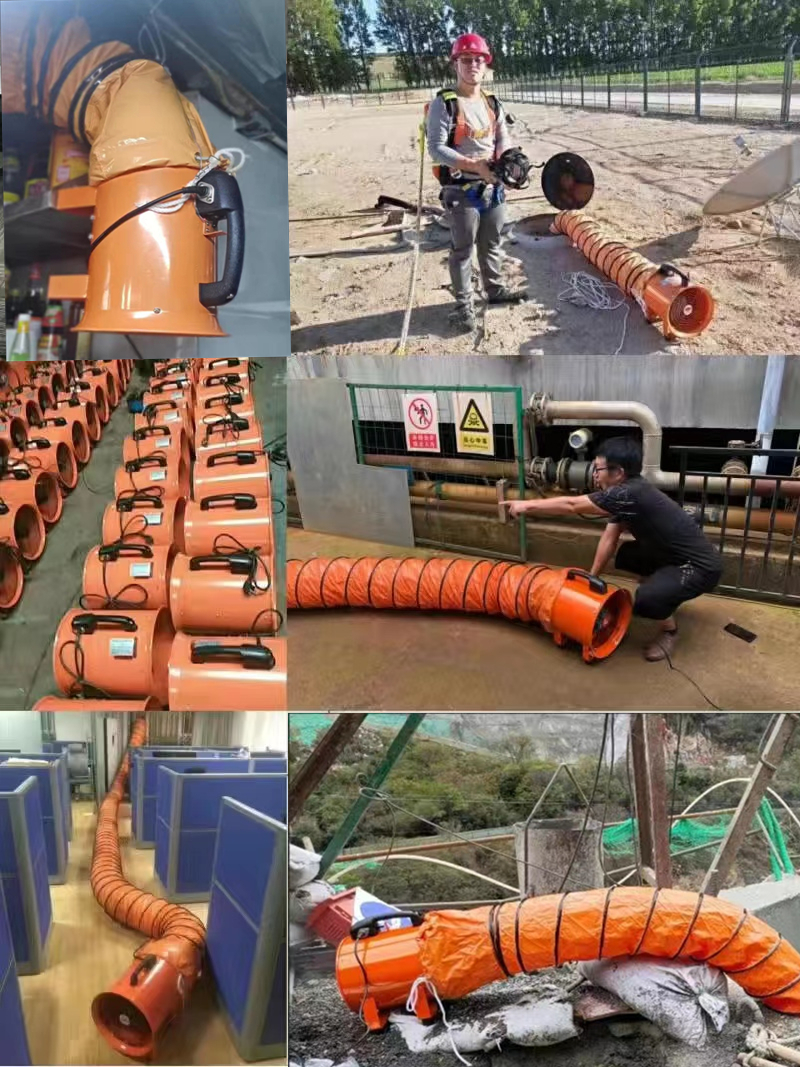

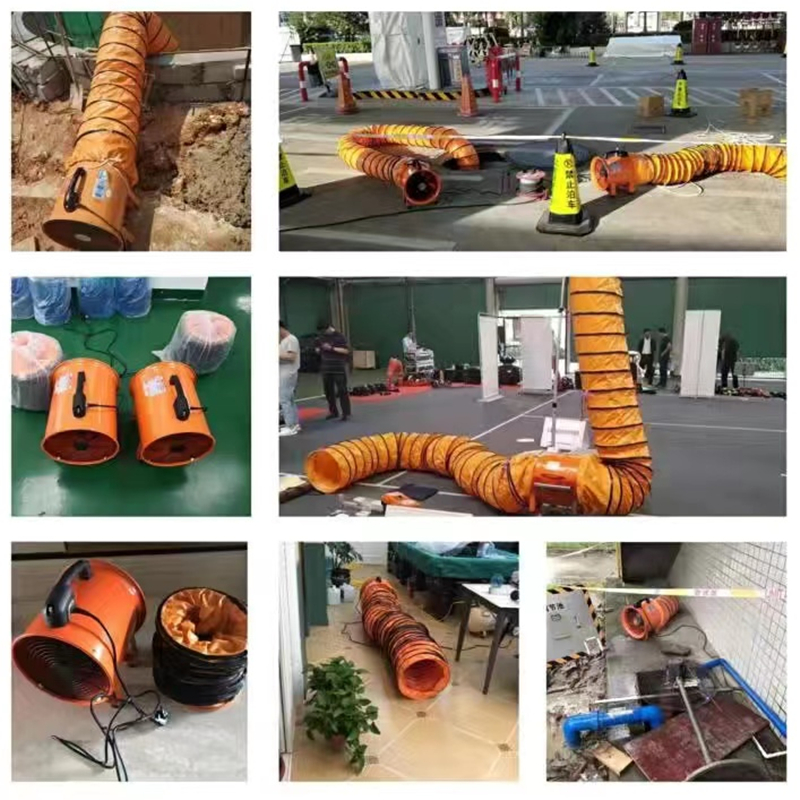

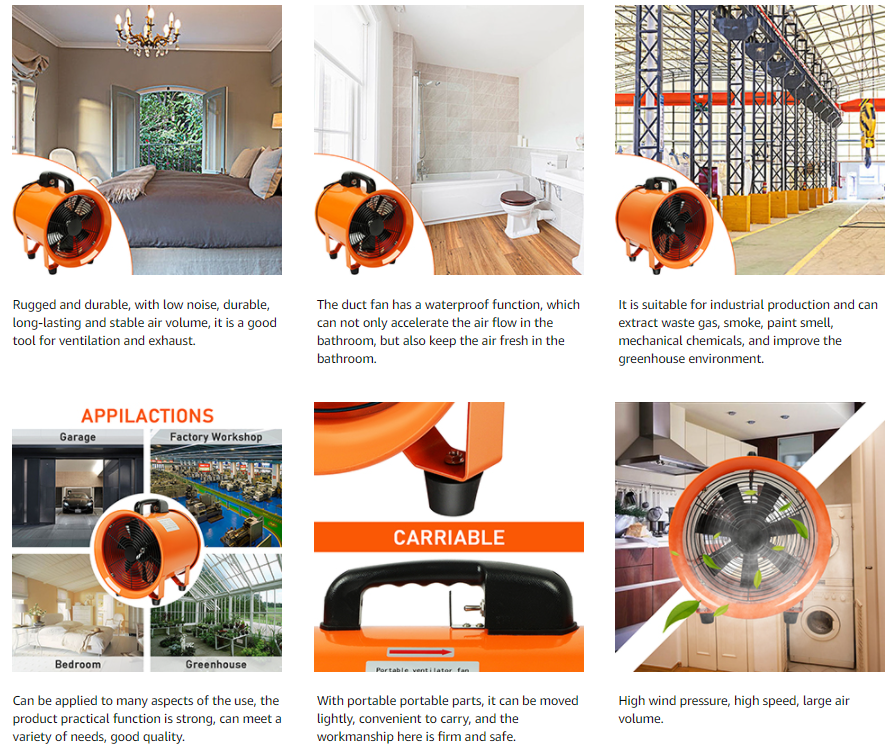

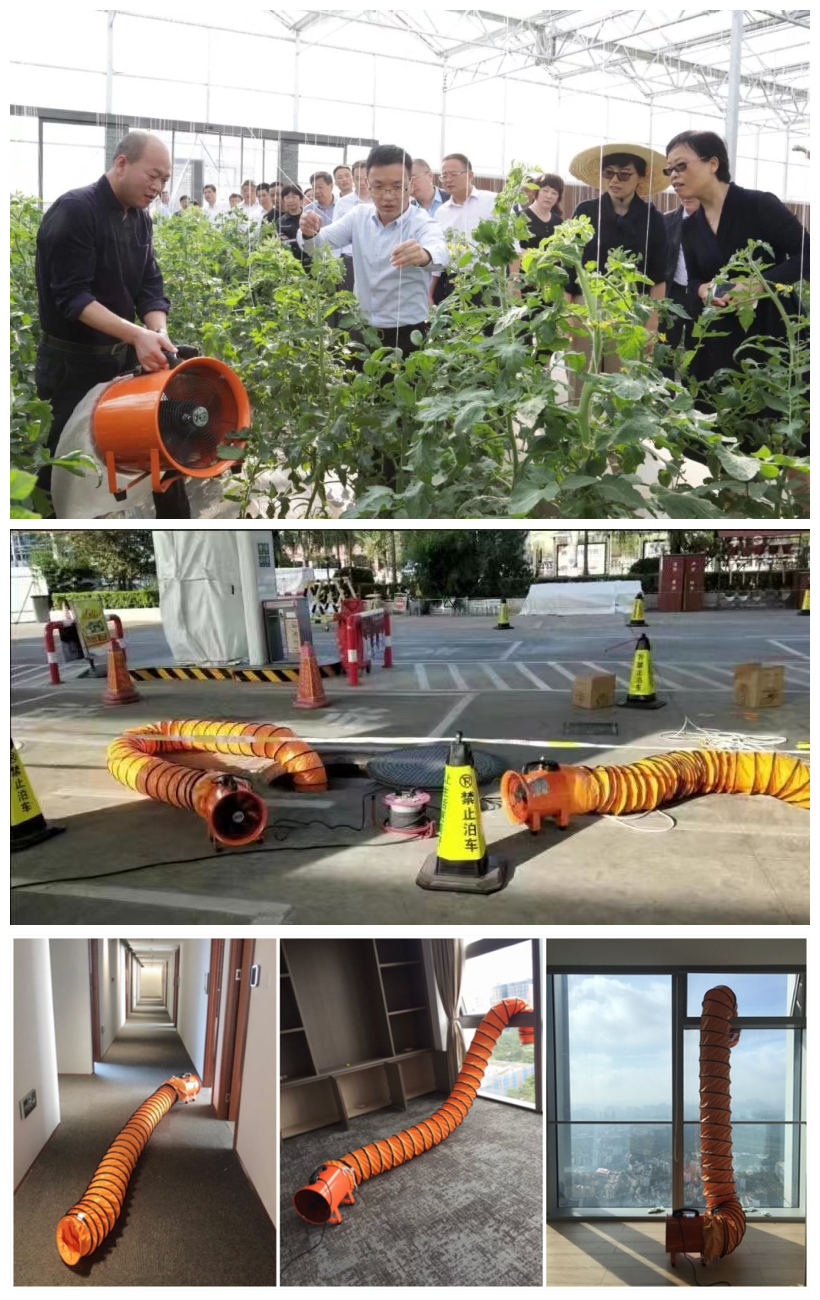

Application:
Flexible duct (pipe):
(click picture to pipe link)
(click picture to pipe link)

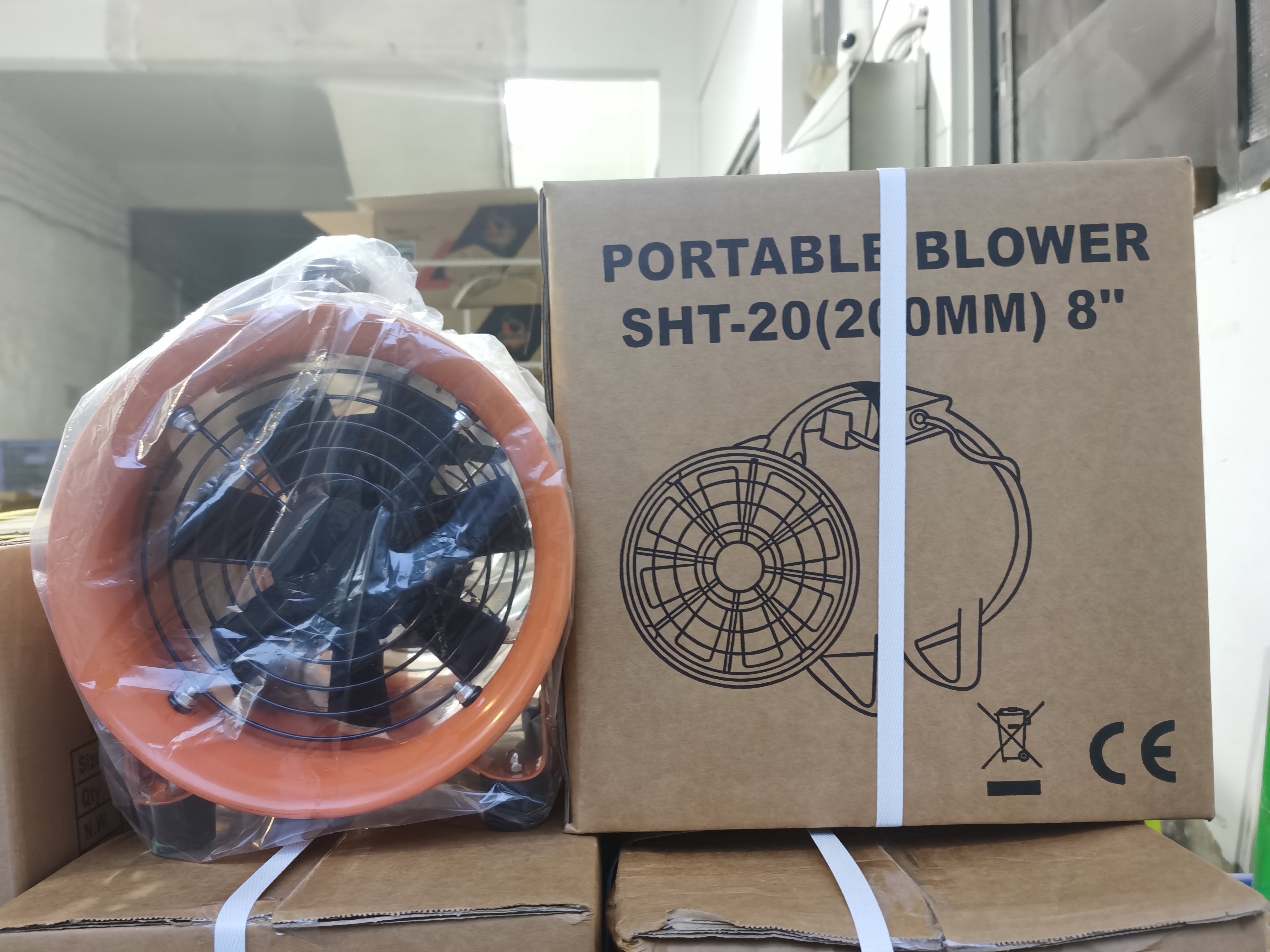

Packing way:
https://www.youtube.com/watch?v=PiHJAcVZf1I
Contact us for more information
