• Mercury 3.5KVA Inverter 4X 200AH Batteries 8x 300 Watts Mono Solar Panels

·                     Mercury 3.5KVA Inverter 4X 200AH Batteries 8x 300 Watts Mono Solar Panels

7 DAYS MONEY  BACK GUARANTEE  12 MONTHS WARRANTY

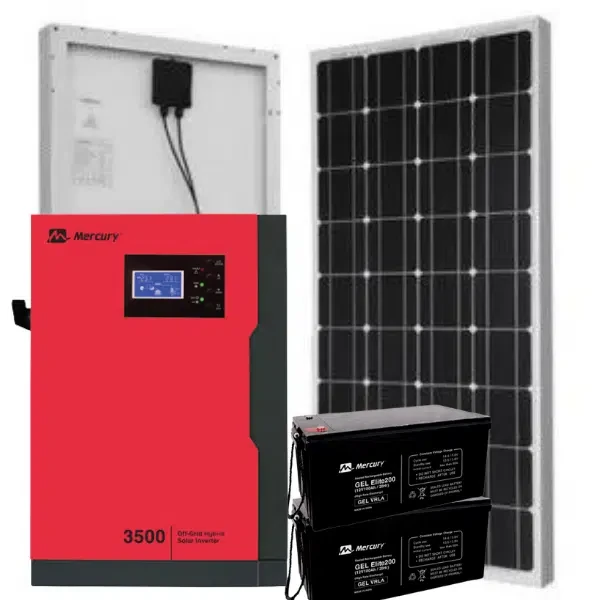

Mercury 3.5KVA Inverter 4X 200AH batteries and 8X high efficiency 300 watts Mono Solar Panels with Solar Charge Controller. This is a complete solar power system that will allow you to power your home with or without NEPA, day and night.   The Mercury power inverter Pure Sine Wave with UPS functionality is a generation ahead of the entire category. That's because our breakthrough chip embedded sine wave' technology delivers the same current as you get from your mains.  The distinguishing features of this Mercury 3.5KVA inverter Pure Sine Wave  are:

Sine Wave Output suitable for PC

Battery State Monitoring

DSP Based Inteiligent Control Circuit

ASIC Technology

Graphical (LED) / LCD Display (Message and Faults)

Great Power Saving

DSP Based Smart Charger

Automatic Power Factor Correction

Smarter Overload Senses & Short Circuit Protection

Mercury 3.5kva Inverter Specification

Voltage Range 180 VAC - 265VAC ± 5 VAC (UPS Mode)
100 VAC - 280 VAC ± 15 VAC (NOR Mode)
Line Low Detection 180V ± 5V (UPS Mode) / 100V ± 15V (NOR Mode)
Line Low Comeback 190V ± 5V (UPS Mode) / 110V ± 10V (NOR Mode)
Line Low Detection 265V ± 5V (UPS Mode) / 280V ± 15V (NOR Mode)
Line Low Comeback 255V ± 5V (UPS Mode) / 270V ± 10V (NOR Mode)
Frequency Transfer Input Frequency 45-55 Hz

Characteristics (AC)

Inverter Full Load Power  2800
Power Factor 0.8 factor (on resistive load)
On-Line Mode Sine Wave
Battery Mode Sine Wave
On-Line Output voltage Follow the Line Voltage
Battery Mode Output Voltage 200 VAC ± 10%
Transfer Time (No-Load) <15 ms
The frequency at Battery Mode 50 Hz ± 1 Hz

Characteristics (DC)

DC Supply Voltage 48V
Battery Floating Charge Voltage 54.0 VDC ± 0.8 VDC
Charge Current <15 A
Battery Voltage Low Alarm 42.4 VDC ± 0.8 VDC
Battery Discharge Protection 41.6 VDC ± 0.4 VDC
Over Charge Protection > 60.0 VDC ± 0.8 VDC

200ah Deep Cycle Battery Specification

300 Watt Monocrystalline Solar Panel Specification

·
