Schneider Electric Easy9 Distribution Board - 3p - 125a -18 Ways- Straight With Fixlink|| EZ9ET18LFD

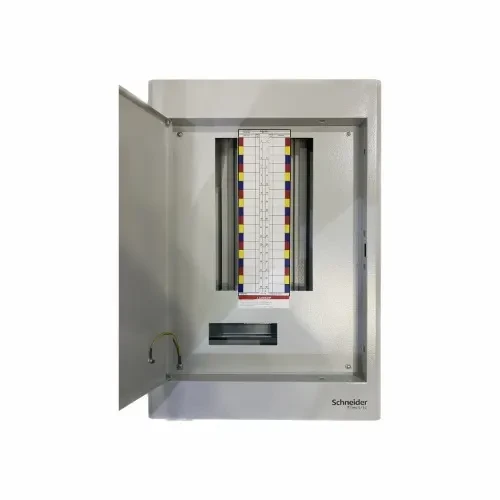

This Easy9 VTPN enclosure is a surface or flush mounted distribution board. The In rated current can be up to 125A. It is a three phase enclosure. The number of ways is 18. The cables can enter via 11 knock-outs. It is intended for installation in residential. The provided equipments are, washer, copper link, screws, removable front cover, insulated fishbone, adjustable pan assembly, provision for incomer and blanking plate. The colour of the enclosure is grey (RAL 7035). This enclosure comes with plain door, the enclosure material is powder coated steel.  The IP degree of protection is IP40 closed door.   The dimensions are (W) 466mm x (H) 515mm x (D) 110mm. According to IEC 62262 standard, the IK degree of protection is IK08. The operating temperature is from -5°C to +50°C. This enclosure is complies with IEC 61439-1 and 3 standards.

Main

• Range                                                          Easy9
• product name                                               VTPN
• product or component type                             Distribution board
• provided equipment                                       1 x washer, 4 x screws, Removable front cover, Copper link, Insulated fishbone, Adjustable pan assembly, Provision for incomer, Blanking plate

Complementary

• enclosure mounting                                        Surface, Flush
• network number of phases                              Three phase
• number of ways                                             18 ways
• type of rail                                                     DIN
• cable entry                                                    11 knock-outs
• Type of door                                                   Plain door
• [In] rated current                                           125 A
• enclosure material                                          Powder coated steel
• width                                                             466 mm outside:
• height                                                            461 mm outside:
• depth                                                             110 mm outside:
• colour                                                             Grey (RAL 7035)

Environment

• Standards                                                  IEC 61439-1

                                                                           IEC 61439-3

• product certifications                                   ASTA
• IP degree of protection                                IP40 conforming to IEC 60529 (closed door)
• IK degree of protection                                IK08 conforming to IEC 62262
• ambient air temperature for operation           -5…50 °C
